• PGZ-C18
  • PGZ-C24
  • PGZ-C32
Model PGZ-C18
Washing Heads Piece 18
Filling Heads Piece 18
Capping Heads Piece 6
Capacity BPH 5000
Power KW 4
Machine Size mm 2800*2100*2300

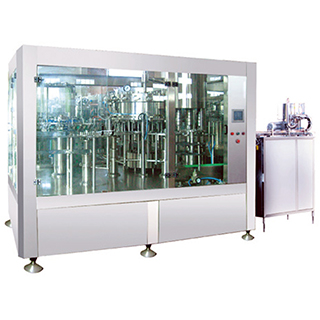

Picture of PGZ-C18
Model PGZ-C24
Washing Heads Piece 24
Filling Heads Piece 24
Capping Heads Piece 8
Capacity BPH 8000
Power KW 5.5
Machine Size mm 3100*2500*3000

Picture of PGZ-C24
Model PGZ-C32
Washing Heads Piece 32
Filling Heads Piece 32
Capping Heads Piece 10
Capacity BPH 10000
Power KW 5.5KW
Machine Size mm 3800*2700*3000

Picture of PGZ-C32
  • Case
  • Description
  • Appliction
  • Features
  • Related Information

Carbonated drink filling machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling Carbonated Beverages ,Cola.Soda Water n bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle-entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably

Carbonated Drink Filling Machine can apply for all kinds of soda drink and carbonated drink. It it suitable to PET bottles with all volumes and shapes.

1.3-in-1 monoblock is composed of rinser, filler and capper
2.The bottle types applicable for various parts are easily, conveniently and rapidly adjustable.
3.Its operation and maintenance is convenient.
4.It is is controlled by PLC with touch-screen as the interface between human and machine.
5.All parts that have direct contact with the beverages are made of high quality stainless steel. And many critical components such as the decelerator, the motor, are from famous international companies.
